1.1.5. Button Infrastructure¶

Buttons all over the apartment can be used to request scenes, scenarios, or tasks in the apartment’s Component Coordination. For each labeled button (with a blue LED),

the button service registers an rsb listener of the form /citec/csra/home/<location>/button/. The location can be any of hallway, kitchen, or living. If a button provides an alias (configured via the bco-registry-editor) with a prefix Task, Scenario, or Scene, the respective

service is called with the remainder of the alias to execute. For example, the button aliased to Scenario-learnface will trigger the Scenario Coordination with learnface at /coordination/request/scenario/learnface. The button service will never send anything on the button scopes, status updates however could be retrieved by listening on the respective coordination components.

The following buttons are currently configured inside the apartment:

1.1.5.1. Main entrance¶

Left	Right
Standard Scene	Demo Scene
Register Scenario	Learn Face Scenario
(light on)	(light off)

1.1.5.2. Hallway¶

Scene Panel
Left	Right
Meeting Scene	Debug Scene
Reading Scene	Entertainment Scene
Pary Scene	Socialiing Scene

Task Panel
Left	Right
Next Song Task	Stop Music Task
Study Data Task	Auto Light Task
Light On Task	Light Off Task

1.1.5.3. Kitchen access¶

Left	Right
Cooking Scene	Dinner Scene
-	Cleanup Scenario
(light on)	(light off)

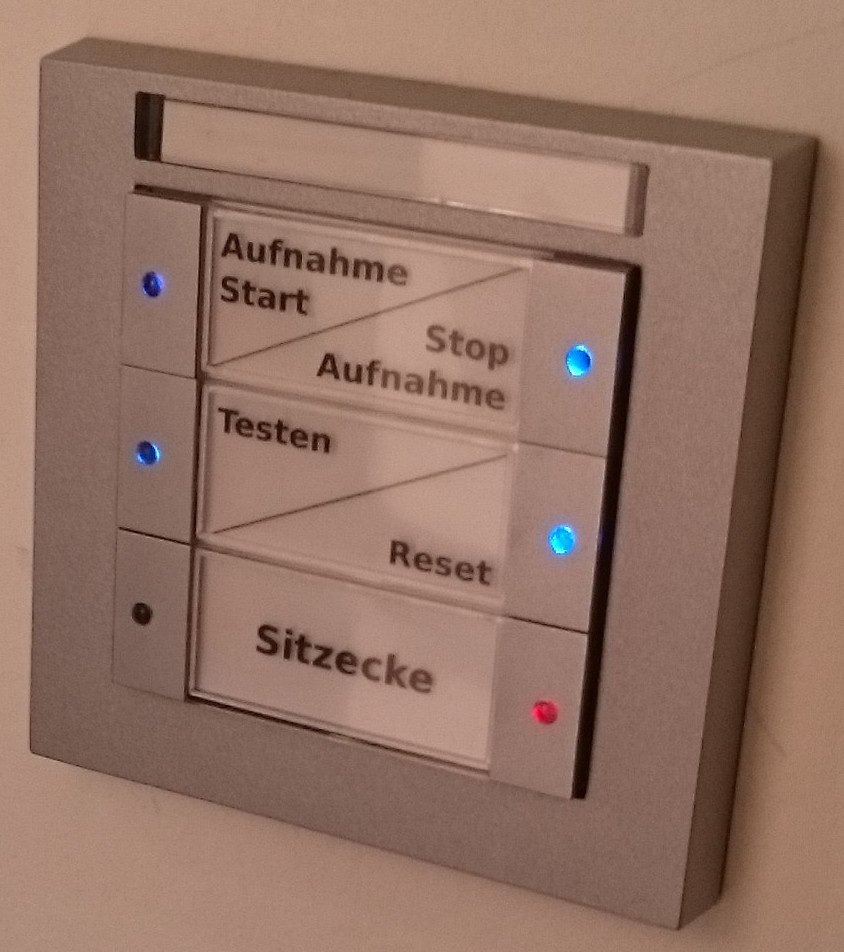

1.1.5.4. Sports door¶

Left	Right
(record start)	(record stop)
Testing Scenario	Standard Scene
(light on)	(light off)

The only buttons that do not trigger the coordination are light switches, “Aufnahme start” and “Aufnamhe stop” at the sports door (see above). Those are instead handled by the Automatic Recording component.
